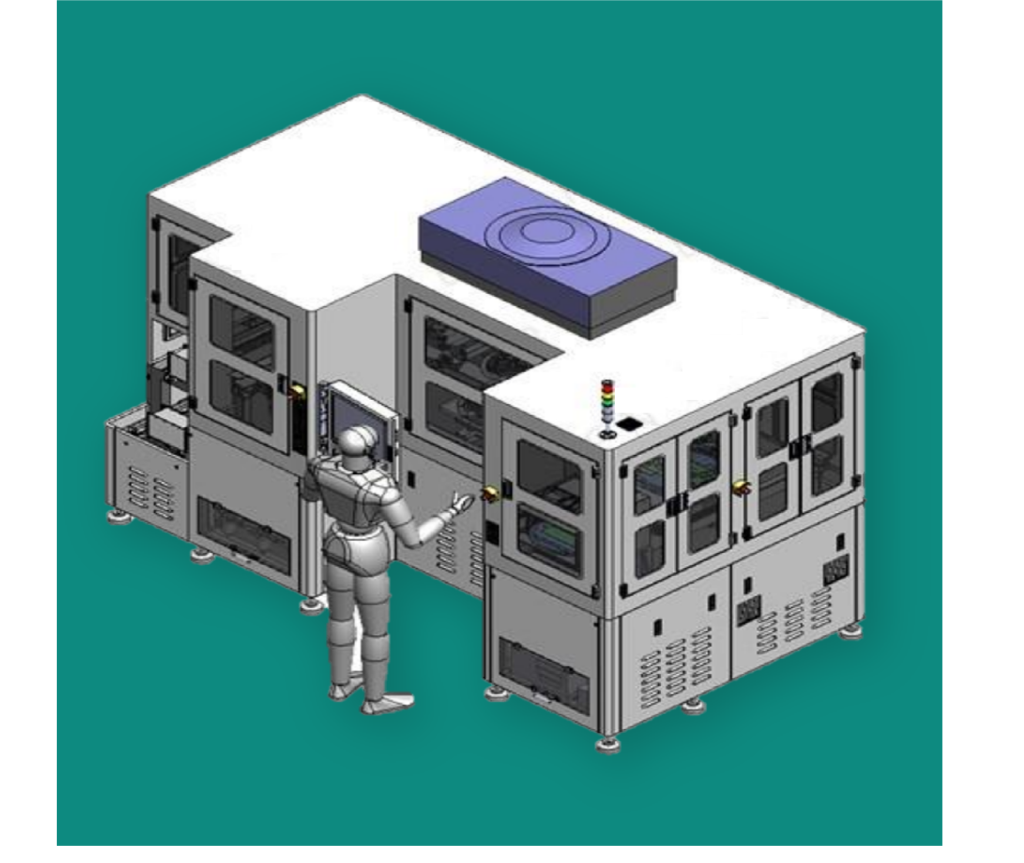

Product: Mounters 2

Mounters

High Productivity
(min 50 rings per hour)
High Warpage Lead Frame Handling
(up to 5mm warpage)
One touch change design – mount chuck and pad
(Motorized rail width change)
Multi Cassette Loading for Lead Frame/Ring Frame
(up to 8 L/F magazine and 2 ring frame cassette)
Attach Head Driven by Linear Motor
(Achieve high speed, accuracy and less maintenance cost)
Rigid Body Structure
(less vibration)
User friendly GUI, SMEMA, SECS/GEM, E84
(for OHT / AGV handling automation)

Items	Specification
System Productivity	Min 50 Ring Per Hour (depends on tape feature and material size)
Material Handling Capability	Lead Frame size : 70mm X 250mm ~ 100mm X 300mm (thickness 2.5mm) Lead Frame type : Map mold & cavity mold (Dead / Live bug, Heatsink or mold face up) Lead Frame warpage : Max. 5mm Ring frame size : Max. 15” Tape type : Pre-cut & normal Tape
System Capability	Mount accuracy : Within 3˚ Ring Frame quantity : 100 sheets (12inch ring frame standard) Tape consumption : 100M (based on ø375), Cutting margin : 30mm, Usage time: appx. 4h 30m (1roll – 100M standard) Conversion time: Within 10 minutes (Mount chuck, Lead frame gripper)
System Condition	Work environment : class 10,000 Temp : 25˚± 5˚ Humidity : 50 ± 20% Material contacts product surface resistance: mount table 106~109
Facilities Required	Voltage AC 380V ± 10%, 50Hz, 3 phase/ Compressed air Over 5 Kgf/㎠ / Vacuum -750 mmHg below Power Consumption Approx. 8KW Exhaust 10,000L Min. ø 100A – PVC Flange
Dimensions & Weight	W x D x H 3000mmX1540mmX1930mm (without FFU) / Weight Approx 3,500kg
Safety	General protection : EMO button, Power switch Enclosing during EQ operation (with gate door)
